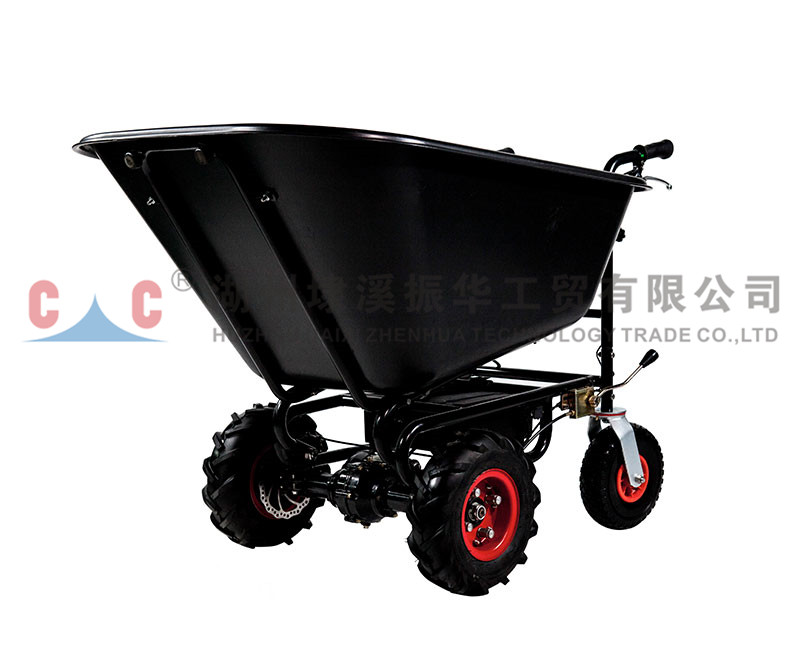

Electric Four Wheels Barrow-PC020-02

Electric Four Wheels Barrow-PC020-02

TYPEPC020-02
CERTIFICATIONUL / PSE / KC / CE
MOTOR POWER (W)350
BATTERY TYPELEAD-ACID / LITHIUM
BATTERY CAPACITY (V/AH)24/24
DURATION (H)2.5
PRODUCT SIZE (MM)1170*900*890
PACK SIZE (MM)840*730*450
TIRE (FRONT/REAR)13-6 / 3.50-4
BRAKEDISC
QTY PER CONTAINER (PCS)20'GP72
40'HQ195
0
Views: 608
contact us
product details

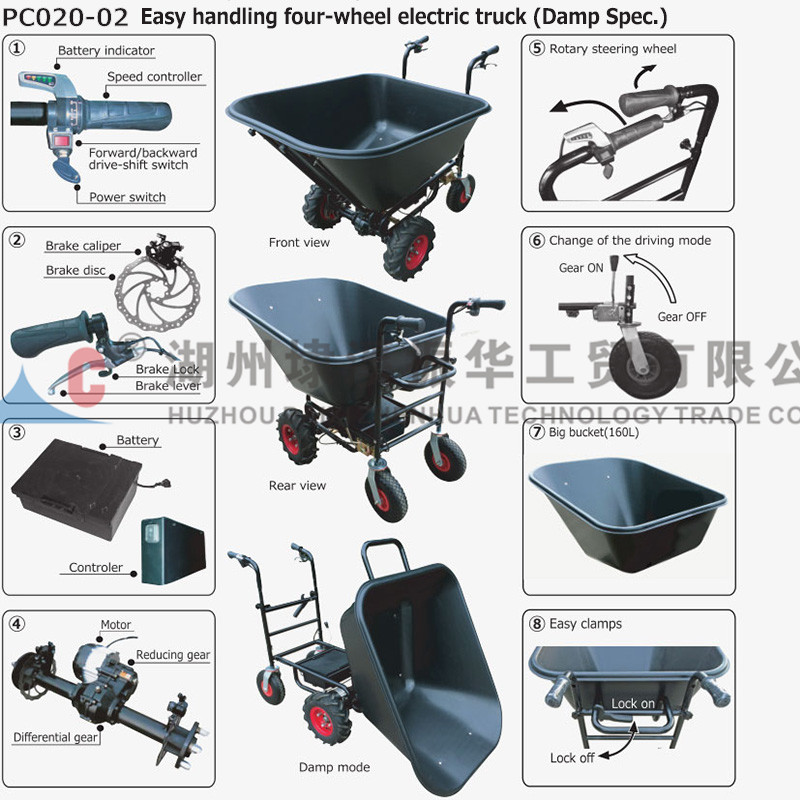

Electric Four Wheels Barrow Specificatons
● Size : 46in(L)x27in(W)x35in~39in(H)
● Weight: 72KG (with battery,pallet)
● Speed : High-speed/Low-speed switchable
〔High speed setting〕3.6mi/h (Forward) • 1.2mi/h (Backward)
〔Low speed setting〕 1.9mi/h (Forward) • 0.8mi/h (Backward)
● Max.Load capacity : 400KG
● Max.Climbing angle : Slope 12°(Max.Load capacity : 400kg)
● Bucket: 160L
● Motor: Wheel motor 350W / RPM:80/min
   (Overcurrent protection circuit)
● Brake system : Disc brake / Brake lever with stopper
● Frame : Low carbon steel
● Surface treatment: Powdered baking finish
● Front tire(2) : 13x5.00-6 (Pneumatic tire)
● Rear tire(2): 3.00-4 Caster type (No flat tire)
● Min.Tuming radius : 27in
● Battery : DC24V,24A Electrolyte lead storage battery (Encapsulated type)
● Power switch key (3)
● Grip throttle speed adjustment (0 position automatic retractable)
● Forward/backward drive-shift switch
● Battery indicator
● Rapid charging function : (charging time : 8hours)
● Charger : (input) 100V~240V/50~60Hz (output) DC29V 3.5A
● Operating temperature range : 32°F~104°F
● Qty per 20’/40’M Container(pcs): 105/210
● Made in China
